The Thermax TC40G and TC60G

         The Thermax TC40G low-rpm and TC60G moderate-rpm generators were originally designed for the Windstream wind generator that would become a core product for Thermax Corporation. The TC40G nominal power rating was 40 watts and the TC60G was rated 60 watts. They were capable of up to 240 and 360 watts respectively at 4500 rpm. The stainless steel shaft was user-selectable with either 5/16" or 1/2" diameter. The internal brushes were field-replaceable. Before the Internet, sales were direct to the user by way of ads in magazines like Popular Mechanics. Clicking on the below hyperlinks will allow you to see the item noted and view its content. Then click the BACK button on your browser to return to this host page. You may also save any page to your local device by right-clicking on a link or image and doing a "Save-As".

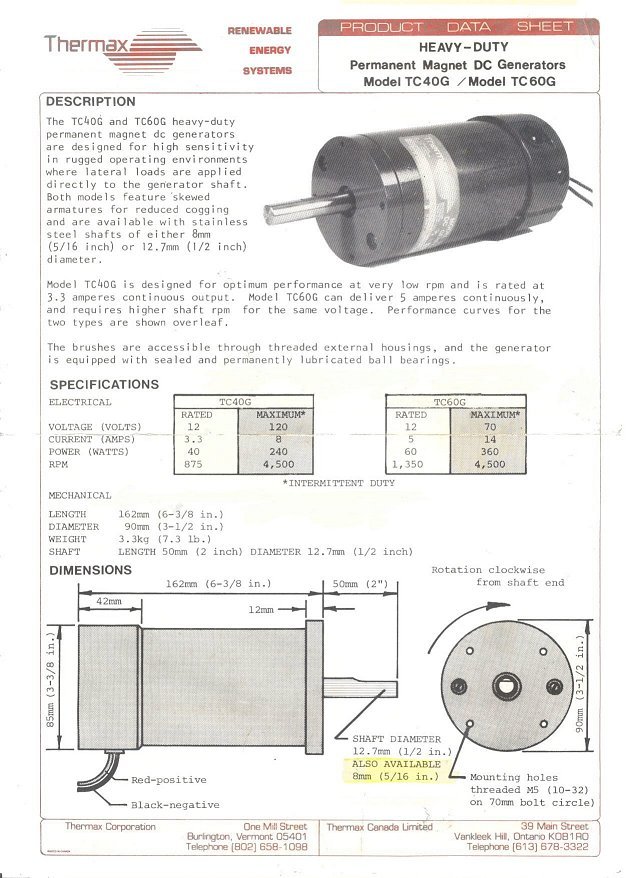

TC40G/TC60G datasheet front

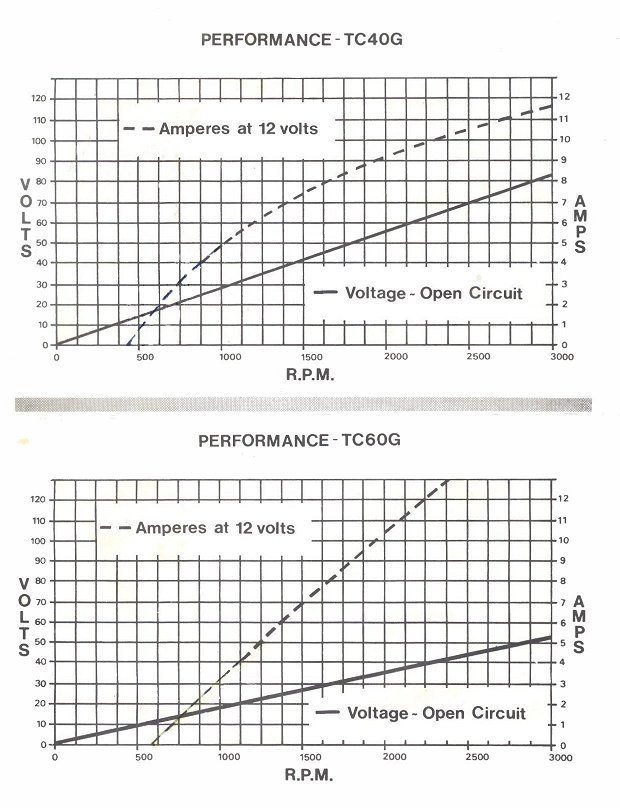

TC40G/TC60G datasheet back


Sale Flyer front and back covers


Sale Flyer inside pages
